FL-net is an industrial-use open network built on Ethernet and common memory systems. FL-net Version 3 (Ver.3) has been established for device level networks in addition to controller level network of FL-net Version 2 (Ver.2). FL-net Ver.3 defines I/O devices mounted on FL-net Ver.2, and allows flattening of networks.
Easy configuration of multiple-vendor environment
- 31 companies support the open network developed in Japan.
- FL-net has a solid track record as a multiple vendor controller systems.
User-friendly specifications and performances
- Easy configuration of independent controller systems.
- Easy configuration of real-time control systems.
- Allow data exchange even when the applications of destination stations are unknown.
Establishment of standardization and certification systems
- Certification is done based on conformity tests at certification facility in Japan.
New Functions of FL-net Ver.3
FL-net Ver.3, which incorporates results of the recent user requirements survey, is designed to provide continuity of information with computer level and device level, and can be connected to other network at device level. Setting and monitoring can be performed from a general computer on the network.

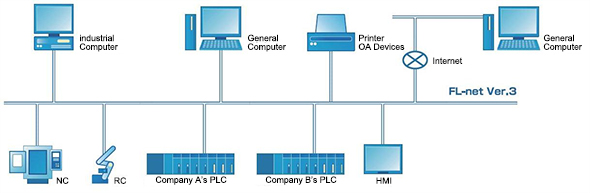

Interconnection with upper-level systems and information systems Simultaneous TCP/IP communications are possible
- Even more flexible information system application is possible, including connections to office automation equipment, the Internet, etc.
- System solutions are now possible, integrated with ERP, MES, and other monitoring, information, and office automation systems.
Enhanced user convenience integrated setting / monitoring tools are offered
- Communication setting, monitoring, and diagnosis are possible from a computer connected to the Ethernet, on all FL-net equipment and devices provided by all vendors.
- The integrated setting tool is offered as software.
- Setting is possible with a single user interface, thereby reducing setup errors and start-up time.

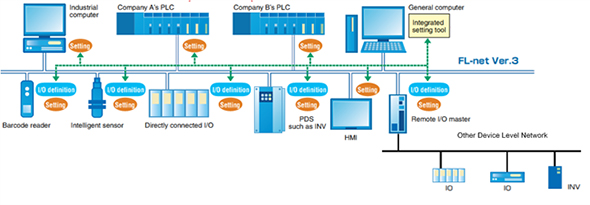

Interconnection at device level
- A shared input-output from all stations can be installed on FL-net.
- A multiple-master device level network, where devices of several vendors are interconnected, can be easily configured.
- Management is possible without difficulties from HMIs, industrial-use computers and others, thereby reducing total system cost.
